TRED 113mm Quick Release Mounting Pins will accommodate:
4 x TRED Pro, HD or GT boards stacked or
2 x TRED 1100 or 800 model boards stacked

NOTE: Threaded pins are not compatible with TRED Quick Release Mounting Pin Heads

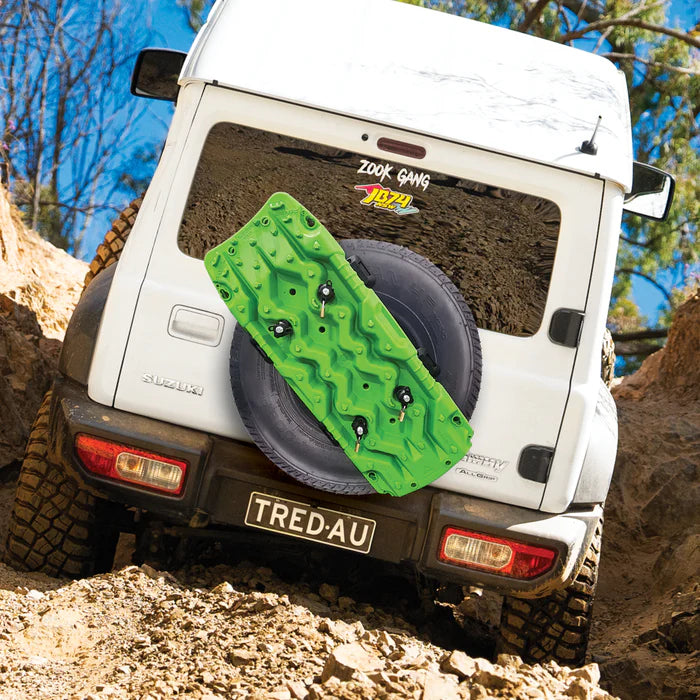

The TRED Quick Release Mounting Pins are designed to easily and securely mount your recovery boards to your vehicle, trailer or caravan. The unique design will mount up to four TRED GT, HD or Pro model recovery boards or two of the TRED 800/1100 model recovery boards while allowing the option of a padlock for added security.

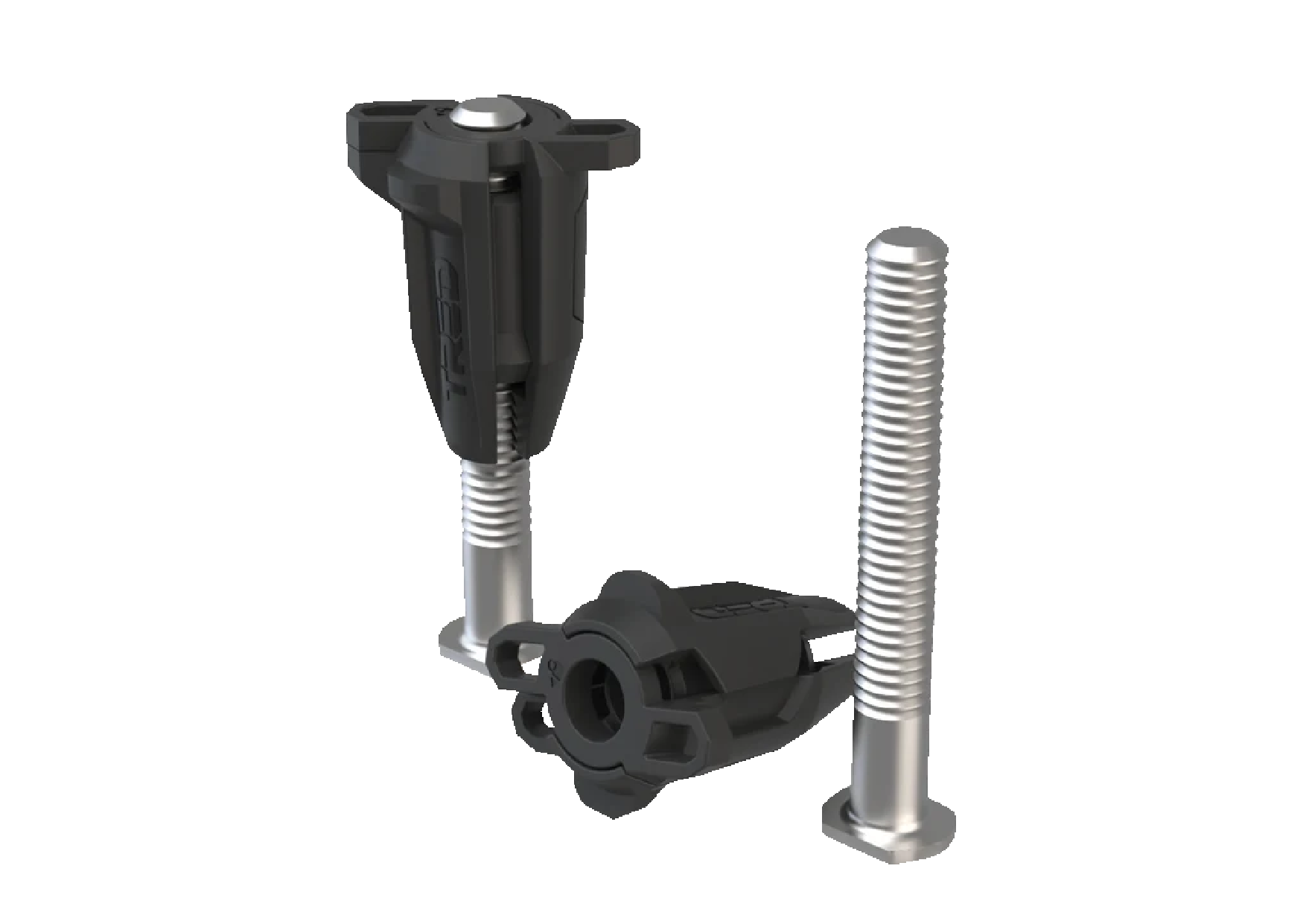

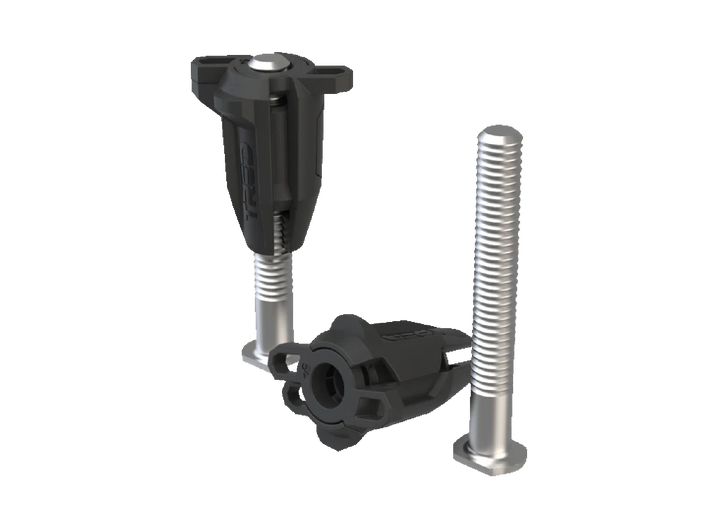

What's included:

2 x TRED 113mm/4.45" Mounting Pins
2 x TRED Quick Release Handles
2 x Stainless Steel M6 Button Socket Head Cap Bolts
2 x Stainless Steel Stepped M6 Washers
2 x Stainless Steel M6 Washers (12mm / 0.47" O.D.)
2 x Stainless Steel M6 Washers (17mm / 0.67" O.D.)
2 x Rubber Spacers (Grommets)

Features:

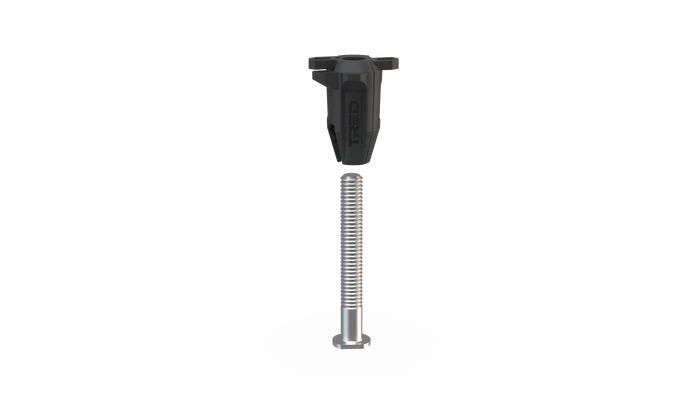

  • M6 Threaded base design
    • With the M6 threaded base design, you’re able to secure these pins easily onto a variety of surfaces. Depending on your installation, mounting location, and brackets used you may require four pins for optimum security and stability. For vertical, side, or anything other than flat mounting, we highly recommend using two sets of Mounting Pins.

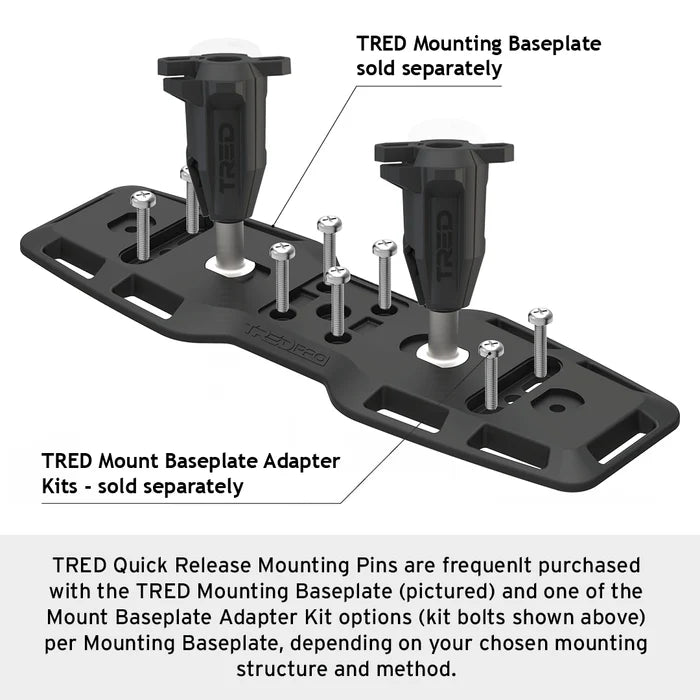

  • Pairs with TRED Mounting Baseplate
    • When paired with a TRED Mounting Baseplate* (SKU: TMBP01*), the installation is more secure and easier to mount due to the pin location slots, recesses and covers within the Baseplate design.
      *Not included, sold separately.

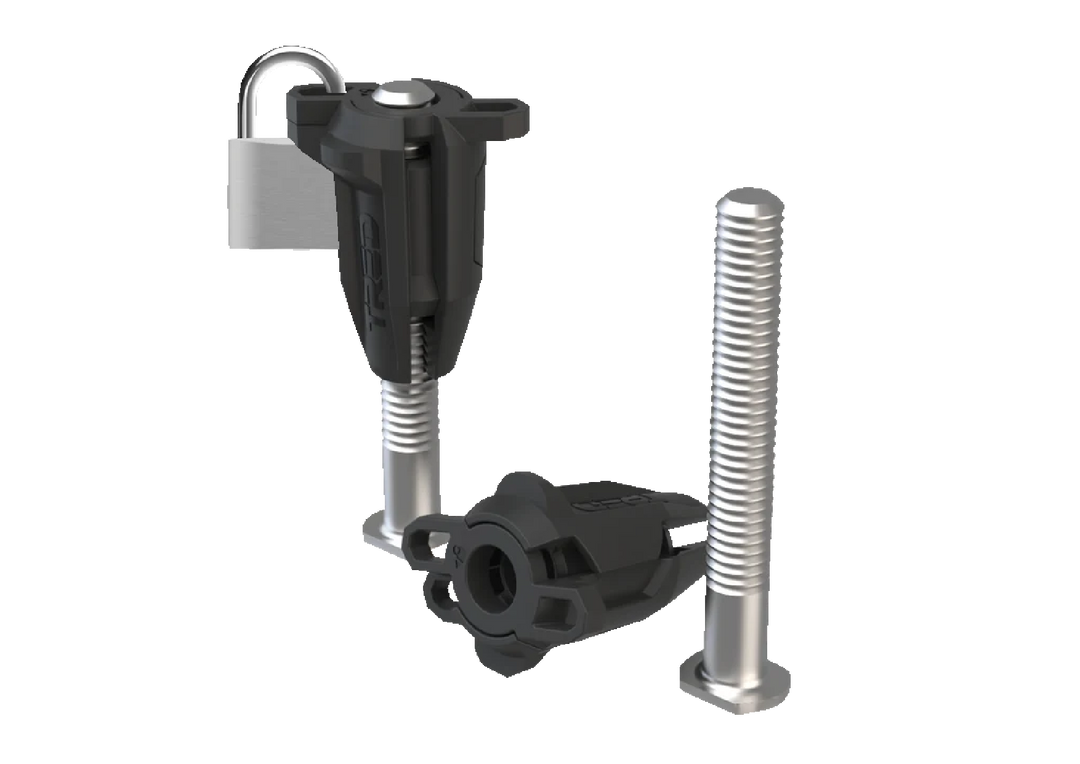

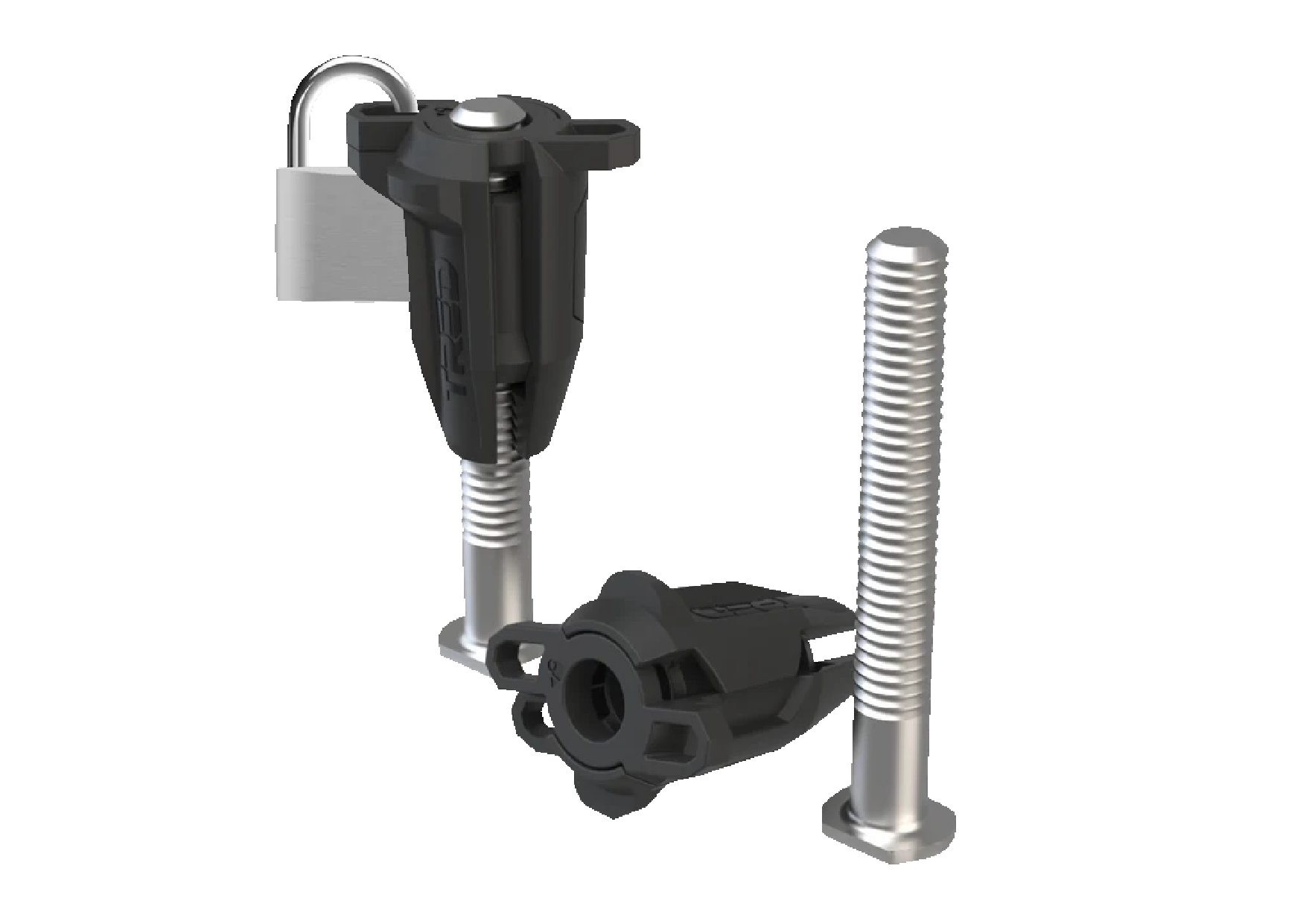

  • Lockable design
    • Lockable with a padlock to safely secure your recovery boards. TRED recommends a 30mm Padlock with a 5mm shackle.
  • Mount up to 4 TRED GT, HD and Pro Boards
    • The unique design will mount up to four TRED GT, HD or PRO model recovery boards or two of the TRED 800/1100 model recovery boards.
  • Work on other branded recovery boards
    • These pins will also work on other branded recovery boards. To ensure fitment is possible check the stacking height measurement - The TRED Threaded Mounting Pin has a securing height range of 22-80mm (0.86" - 3.15") while maintaining the locking feature.
